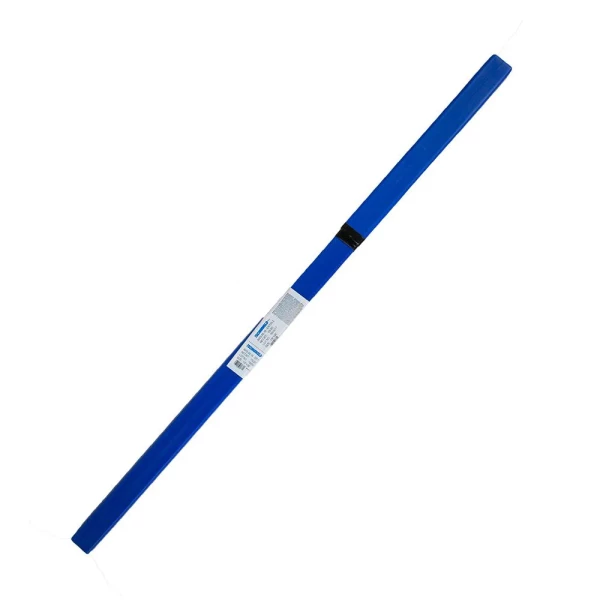

80SD204536- ER80S-D2 .045 Diameter 36 Inch Tig ROD

ER80S-D2 .045 Diameter 36 Inch Tig ROD

Mild Steel - Tig Rod

80SD204536-

Filler Metals

Welding Process

Diameters

Packages

A mild steel solid wire that contains 0.50 % Molybdenum for increased strength and high levels of manganese and silicon to provide good wetting, and good rust and scale tolerance.

ER80S-D2 will give radiographic quality welds with excellent bead appearance in both ordinary and difficult-to-weld carbon and low alloy steels. It is suitable for single and multiple pass welding of carbon and low alloy steels and higher strength steels in the as welded and post weld heat treated conditions.

Feature

Contains a high level of deoxidizers (Mn and Si) and also molybdenum for increased strength.
Suitable for single and multi-pass welding of a variety of carbon and low alloy steels.
High toughness at low temperatures with a nominal 1% Ni or less.
Preheat and interpass temperatures are typically kept between 375-425°F.
These creep resistant steels are typically used in chemical industries for heat exchangers, boilers, piping and pressure vessels at service temperatures up to 1100°F.
Capable of producing weld deposits with 550 MPa (80 ksi) tensile strength.
Due to the low carbon content, and thus lower strength level, this alloy exhibits greater resistance to cracking and is more suitable for welds to be left in the as welded condition than ER90S-B3.

Manufacturer:	Techniweld USA
Brand:	Filler Metals
Package:	Box
Package Qty:	10
UOM:	LB
Shipping Dimensions:	2W x 37.5L x 2D
Weight:	1

Attributes

AWS Class	A5.18
Packaging Size	10 Lb
Welding Process	TIG
AWS Alloy	80S-D2
Diameter	3/64" (0.045")
