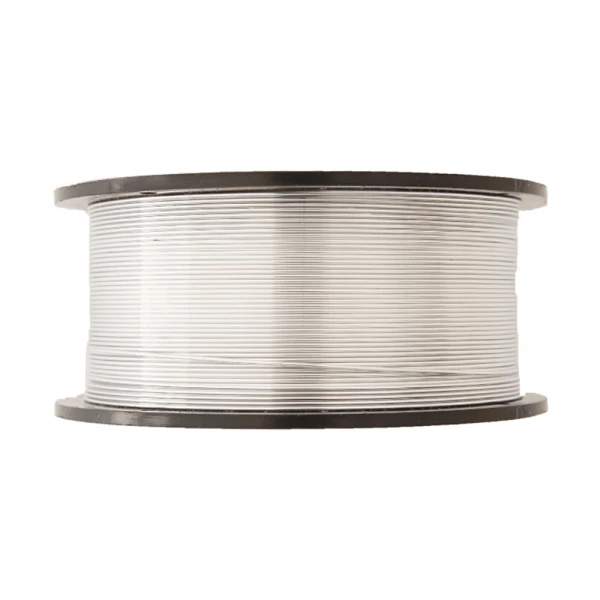

AFM316L0302

ER316L .030 x 2 ISO G19123L

Stainless Mig Wire

AFM316L0302

Filler Metals

Welding Process
TIG MIG
Diameters
.030 .035
Packages
10 LB 2 LB 30 LB

ER316/316L has the same analysis as ER316, except that the carbon content is limited to a maximum of 0.03% in order to reduce the possibility of formation of intergranular carbide precipitation.

Download Specification Sheet Specification Sheet Download Safety Data Sheet Safety Data Sheet

ER316/316L is primarily used for welding low-carbon molybdenum-bearing austenitic alloys. ER316/316L is not as strong at elevated temperatures as ER316H. Because of the molybdenum, this product has increased creep resistance at elevated temperatures, as well as pitting resistance in marine and industrial environments.

Feature

  • The high silicon allows better arc stability along with minimal post-weld grinding.
  • Used in applications where a good cosmetic appearance is important.
  • Has similar usage as MIG 316, but the 0.03% maximum carbon content increases resistance to intergranular corrosion.
  • Flux coating provides smooth arc transfer and slag is self peeling for easy removal.
  • Designed with low carbon levels to help eliminate carbide precipitation in high temperature service.
  • Conforms to certification: AWS A5.9 and ASME SFA A5.9.
  • Can be welded in any position except vertical down.
  • Used primarily for welding low carbon molybdenum bearing austenitic alloys.
Manufacturer: Techniweld USA
Brand: Filler Metals
Package: Spool
Package Qty: 2
UOM: LB
Shipping Dimensions: 4.5W x 4.5L x 2.5D
Weight: 1
Country: United States
Attributes
AWS Class A5.9
Packaging Size 2 Lb
Welding Process MIG
AWS Alloy 316L
Diameter 1/32" (0.030")
