MM 45A Inv DV Plasma Cutter

Use the included adapter cord to run this unit off 120V AC power for a cutting capacity on steel of up to 1/4” at a travel speed of 10 inches per minute. It cuts all electrically conductive materials. It cuts a narrow kerf that results in a smaller heat affected zone for reduced warping.

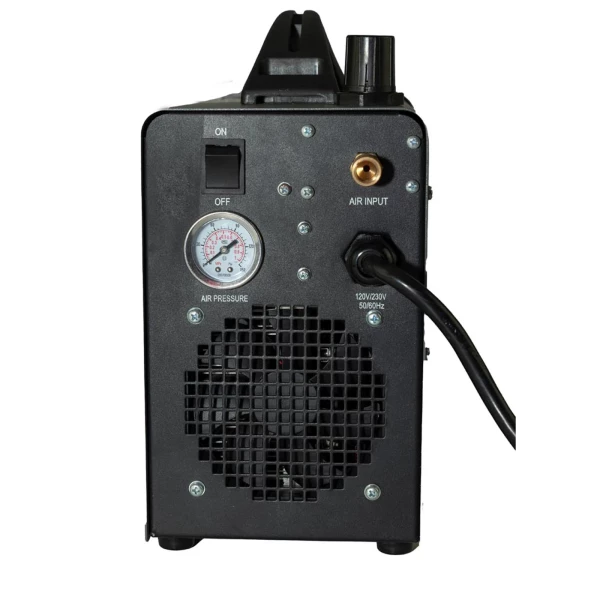

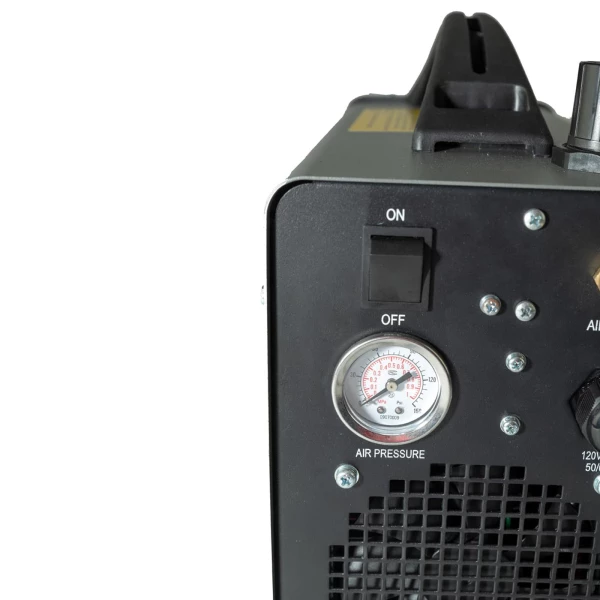

The Metal Man PC 45DV is lightweight (22.58 lbs.), compact, inverter design for greater portability. It has a pilot arc for easy starts and enables the user to cut fence or expanded metal. This unit has a built-in air pressure adjustment and gauge, indicator lights for quick trouble shooting and thermal overload protection and now features a built-in water separator.

Feature

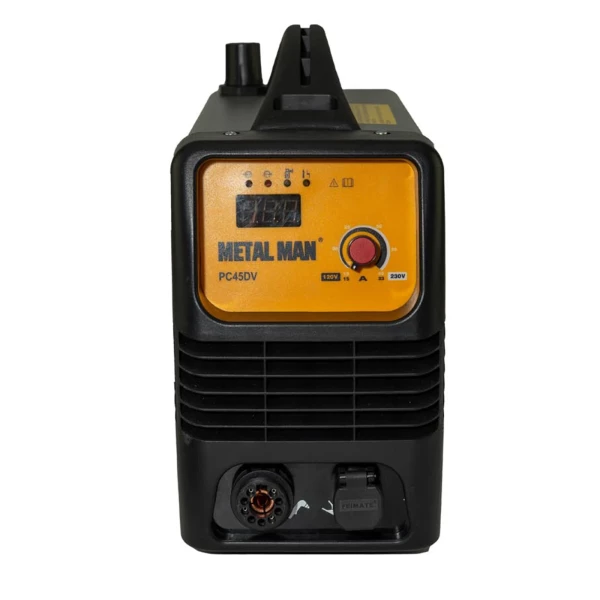

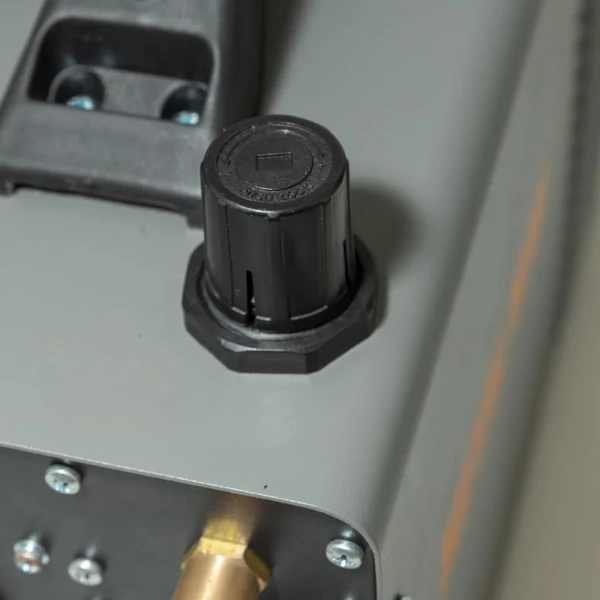

• Indicator lights for easy trouble shooting, Built in water separator for increased consumable life.
• Cuts a narrow kerf resulting in a small heat affected area for reduced warping.
• Pilot arc feature for cutting expanded metal and fencing efficiently.
• Cuts all electrically conductive materials.
• Duty Cycle: 35% at 23 Amps with 120V Input Power or 50% at 45 Amps with 230V Input Power.
• Output Range (MIG): 15-23A DC with 120V Input Power or 15-45A DC with 230V Input Power.
• Power Supply: 120V, 23A, 50/60Hz, Single-Phase or 230V, 45A, 50/60Hz, Single-Phase.
• Compressed Air Required: 4.5 CFM at 60 PSI - Do Not Supply More than 100 PSI
• No-Load Voltage: 310 Volts DC.
